Smart Focus 130

With just a few settings the plasma cutting units of the Smart Focus series achieve excellent results in the cutting range from 0.036 to 1 1/2 inch. Even under challenging conditions highest cutting quality and speed are realised. In such cases, we use our well-proven cutting technologies, e.g. Contour Cut for cutting mild steel. The optimised gas control units and torches protect the consumables, reduce the gas consumption and the costs per cutting foot. As a further development of the Contour Cut technology the Silent Cut technology reduces the sound pressure level by up to 15 dB(A) during cutting with currents between 60 and 160 A.

Contact person
Plasma cutting technique

Our team will be pleased to advise you

phone +1 469.770.9799
email

Send e-mail now

Smart Focus 130

With just a few settings the plasma cutting units of the Smart Focus series achieve excellent results in the cutting range from 0.036 to 1 1/2 inch. Even under challenging conditions highest cutting quality and speed are realised. In such cases, we use our well-proven cutting technologies, e.g. Contour Cut for cutting mild steel. The optimised gas control units and torches protect the consumables, reduce the gas consumption and the costs per cutting foot. As a further development of the Contour Cut technology the Silent Cut technology reduces the sound pressure level by up to 15 dB(A) during cutting with currents between 60 and 160 A.

Inquire Now

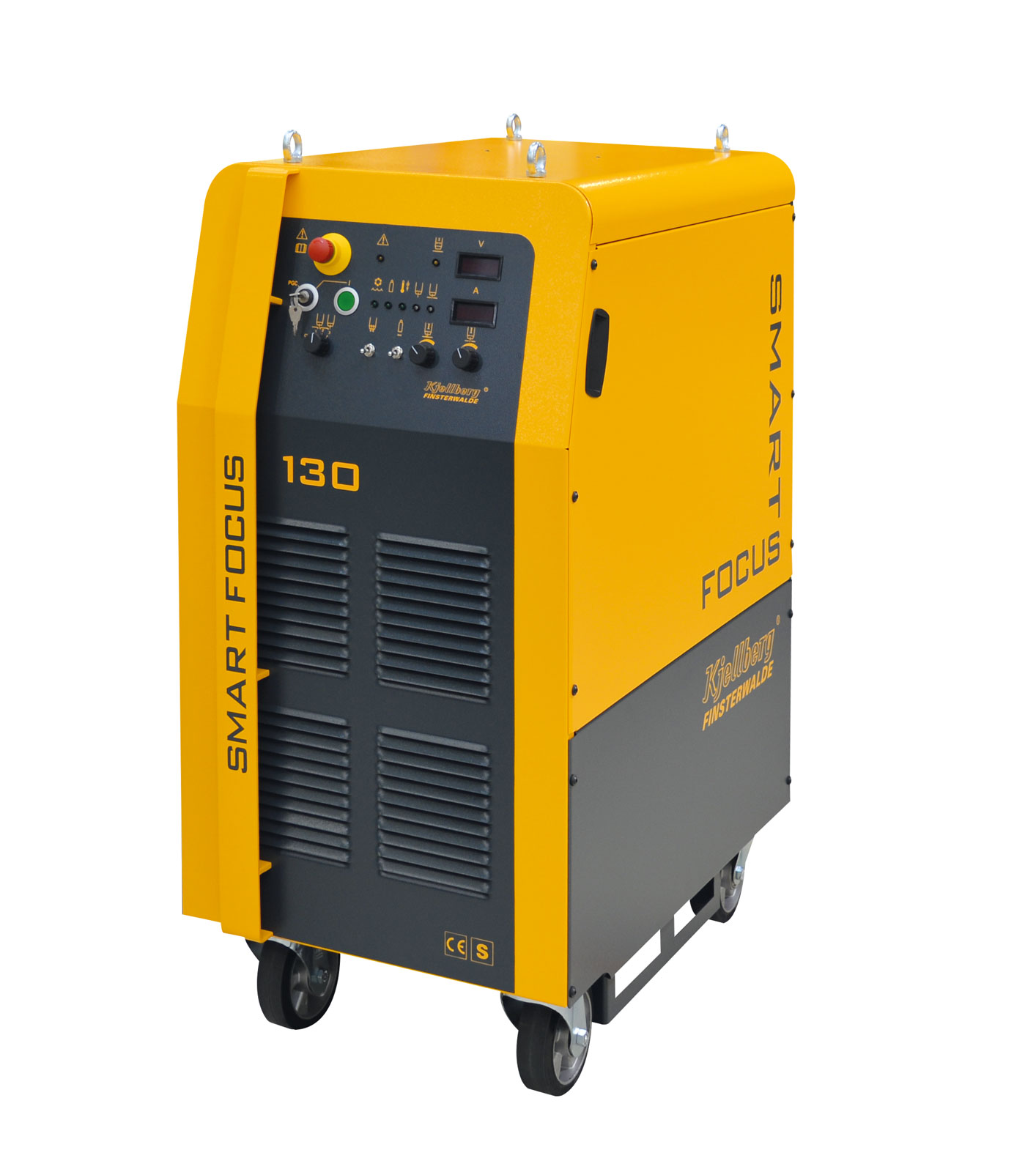

Power source Smart Focus 130
Mains voltage* 3 x 480 V, 60 Hz
Cutting current 35 - 130 A
Marking current 10 - 50 A
Cutting range
Maximum
Recommended

1 1/2 in
0.036 - 1 1/4 in
Piercing 1 in
Plasma gases O2, Ar / H2, N2, air
Piercing Ar, N2
Dimensions (L x W x H) 40.55 x 22.44 x 49.61 in
1030 x 570 x 1260 mm
Mass 587 lb
266 kg
Plasma machine torch PerCut 4000
Quick change head PerCut 4000

*Other voltages and frequencies available upon request.

Contour Cut
Exact contours in mild steel with a diameter to material thickness ratio of 1:1 (Diameter:material thickness) | more...

Contour Cut Speed
Contour cutting in mild steel with similar quality and up to 50% higher speed | more...

Silent Cut
Cutting of mild steel with reduced sound pressure level | more...

HiFinox
Dross-free cutting of stainless steel in the range between 0.036 and 1/4 inch | more...

Ar/H2 Mix
Excellent cutting results thanks to active mixing of single gases for stainless steel and aluminum starting from 1/4 inch | more...

Marking, notching, punching
Individual labeling of the material
